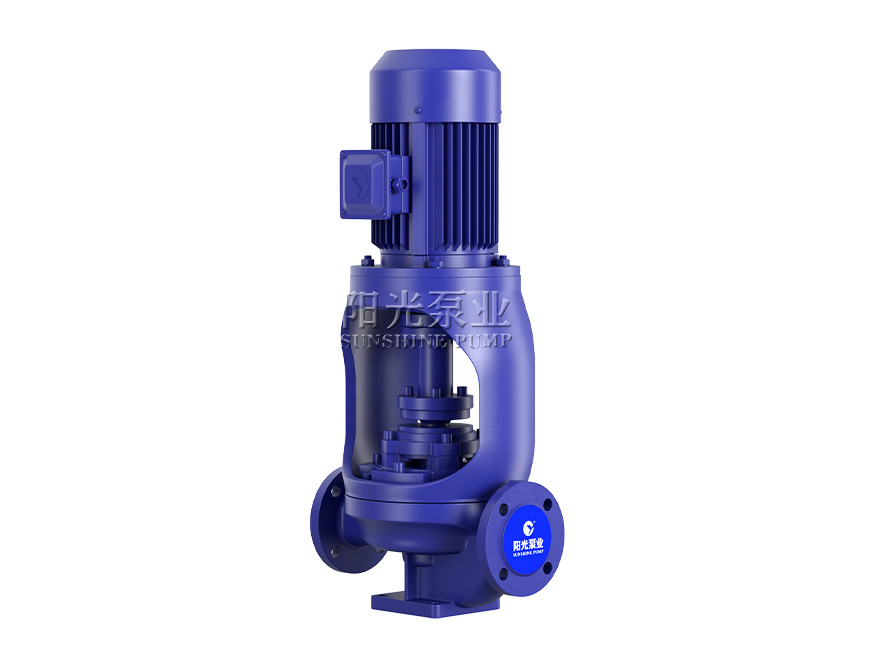

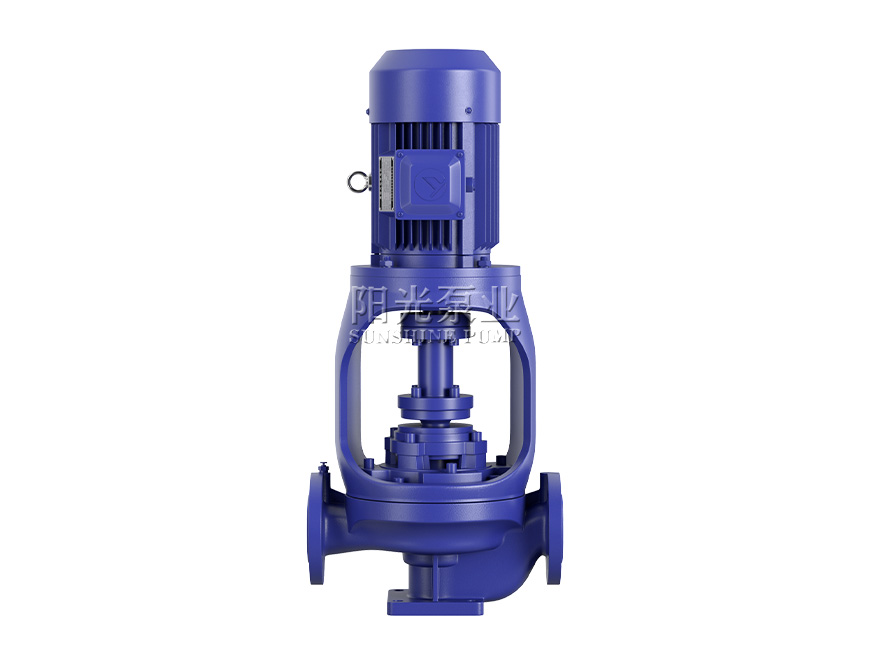

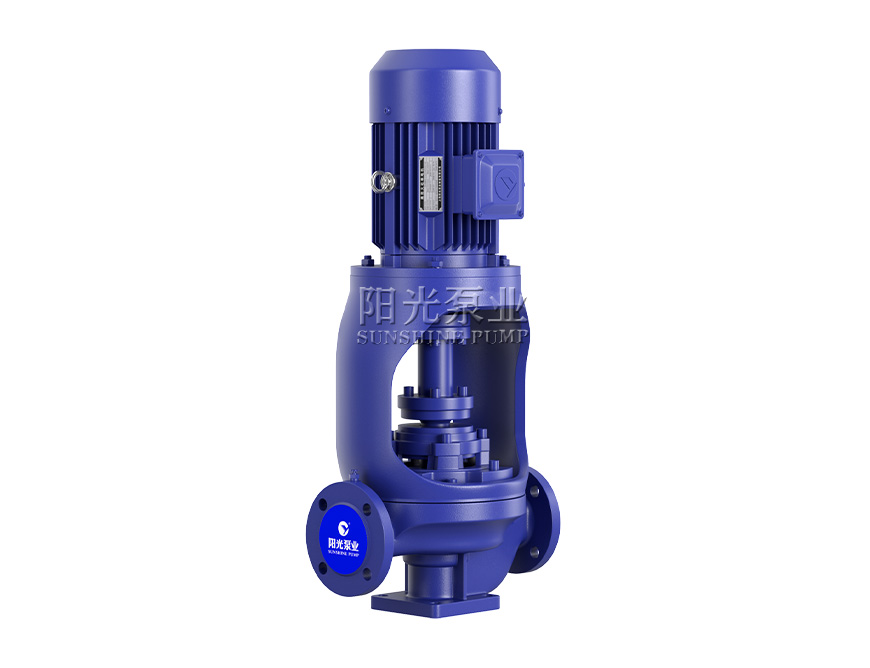

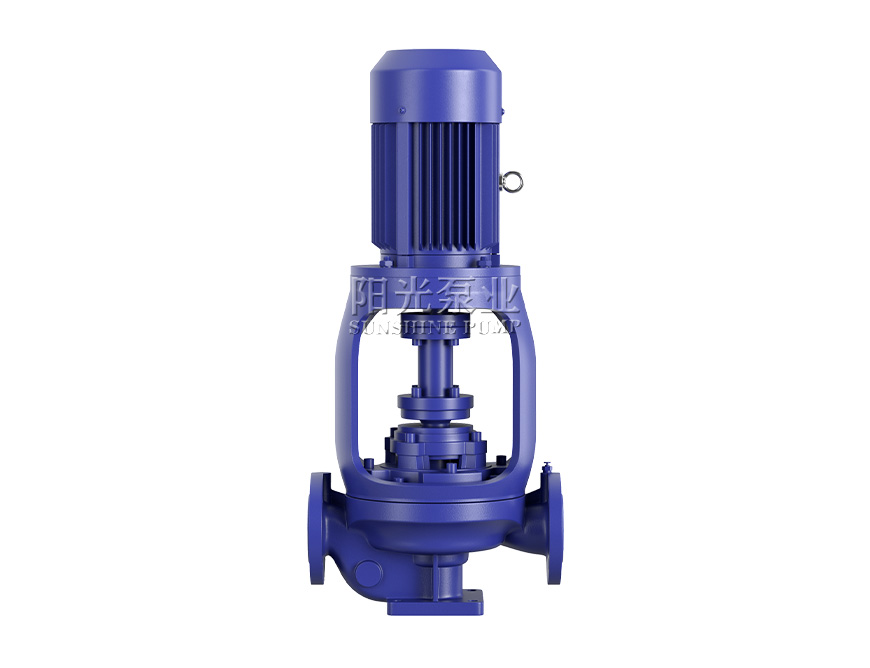

ISGB便拆立式管道離心泵

變拆式安裝，解決了更換機封難的問題，操作方便

免費電話 在線咨詢 資料下載

高級工程師
專業為您選型報價

免費電話，無需話費，輸入立即溝通

免費電話 在線咨詢

 點擊立刻咨詢

正在呼叫您將接收到 021開頭的回?fù)茈娫?請稍后!

上海陽光泵業提示您：

請輸入正確的手機號碼！

確定

產品簡介

ISGB、ISRB型便拆立式管道離心泵是在ISG基礎上開發成功的一種結構新穎、技術先進的泵類產品。該立式泵特別是在整體結構上進行大膽突破設計。該泵具有運轉更平穩、使用壽命長、配套更方便、維護保養更輕松等無可代替的優點。是替代ISG型立式泵、IS型離心泵、S型雙吸泵等常規各種離心泵的產品。

產品特點

·采用獨立軸承體、泵軸支撐，解決了原來立式泵靠電機軸承支撐的不足之處。

·立式結構，安裝調試方便，獨特設計的電機和泵體采用聯接體聯接，同心度高、加工精度高，占地面積大大減少，縮減了建筑投資。

·底腳穩固、結構緊湊，精美的鑄造和外觀處理賦予立式離心泵新的美感，使產品煥發藝術的魅力，可以和國外著名廠家立式泵媲美。

·配用低速Y系列標準通用電機，運行平穩、噪音極低、更換方便。

·軸承采用精密軸承，精度高、可靠性好、壽命長，對軸承的維護保養十分方便。

·葉輪采用可自平衡軸向力的水力模型，使得泵軸承和機械密封使用壽命大大延長，消除了原立式泵軸向力大的不足之處。

·可拆卸爪型彈性聯軸器，使泵起動無振動、無噪音，旋轉部件設有可靠的安全防護罩，安全性極好。

·機械密封采用不銹鋼、碳化鎢、氟橡膠等材料制成，耐高溫、高壓、運行壽命長，無滲漏，對軸無磨損，保證工作環境整潔。

·泵蓋結構設計獨特，即可十分輕便取出軸承座、泵蓋、泵軸、葉輪等組合件，進行更換機械密封和葉輪，維修方便快捷。

適用范圍

輸送介質為清水或物理化學性質類似清水的其它液體。

結構圖紙

性能參數

序號	型號	流量		揚程 (m)	效率 (%)	轉速 (r/min)	功率 (kW)
序號	型號	(m3/h)	(L/s)	揚程 (m)	效率 (%)	轉速 (r/min)	功率 (kW)
1	ISGB40-12.5	6.3	1.75	12.5	54	2900	0.55
2	ISGB40-12.5A	5.6	1.56	1	52	2900	0.37
3	ISGB40-20	6.3	1.75	20	46	2900	1.1
4	ISGB40-20A	5.6	1.56	16	45	2900	0.75
5	ISGB40-32	6.3	1.75	32	40	2900	2.2
6	ISGB40-32A	5.9	1.64	28	39	2900	1.5
7	ISGB40-32B	5.5	1.53	24	38	2900	1.1
8	ISGB40-50	6.3	1.75	50	33	2900	4.0
9	ISGB40-50A	5.9	1.64	44	31	2900	3.0
10	ISGB40-50B	5.3	1.47	36	29	2900	2.2
11	ISGB40-80	6.3	1.75	80	28	2900	7.5
12	ISGB40-80A	5.9	1.64	70	28	2900	5.5
13	ISGB40-80B	5.5	1.53	60	27	2900	5.5
14	ISGB40-12.5(I)	12.5	3.47	12.5	62	2900	1.1
15	ISGB40-12.5(I)A	11	3.05	10	60	2900	0.75
16	ISGB40-20(I)	12.5	3.47	20	58	2900	1.5
17	ISGB40-20(I)A	11	3.05	16	57	2900	1.1
18	ISGB40-32(I)	12.5	3.47	32	52	2900	3.0
19	ISGB40-32(I)A	11.7	3.25	28	51	2900	2.2
20	ISGB40-32(I)B	10.4	2.89	24	50	2900	1.5
21	ISGB40-50(I)	12.5	3.47	50	46	2900	5.5
22	ISGB40-50(I)A	11.7	3.25	44	46	2900	4.0
23	ISGB40-50(I)B	10.6	2.94	36	40	2900	3.0
24	ISGB40-80(I)	12.5	3.47	80	38	2900	11.0
25	ISGB40-80(I)A	11.6	3.22	70	38	2900	7.5
26	ISGB40-80(I)B	10.8	3.0	60	37	2900	7.5
27	ISGB40-80(I)C	10.1	2.87	52	36	2900	5.5
28	ISGB50-12.5	12.5	3.47	12.5	62	2900	1.1
29	ISGB50-12.5A	11	3.05	10	60	2900	0.75
30	ISGB50-20	12.5	3.47	20	58	2900	1.5
31	ISGB50-20A	11	3.05	16	57	2900	1.1
32	ISGB50-32	12.5	3.47	32	52	2900	3.0
33	ISGB50-32A	11.7	3.25	28	51	2900	2.2
34	ISGB50-32B	10.4	2.89	22	50	2900	1.5
35	ISGB50-50	12.5	3.47	50	46	2900	5.5
36	ISGB50-50A	11.7	3.25	44	45	2900	4.0
37	ISGB50-50B	10.6	2.94	38	44	2900	3.0
38	ISGB50-80	12.5	3.47	80	38	2900	11.0
39	ISGB50-80A	11.6	3.22	70	38	2900	7.5
40	ISGB50-80B	10.8	3.0	60	37	2900	7.5
41	ISGB50-80C	10.0	2.78	52	36	2900	5.5
42	ISGB50-12.5(I)	25	6.97	12.5	69	2900	1.5
43	ISGB50-12.5(I)A	22.3	6.19	10	67	2900	1.1
44	ISGB50-20(I)	25	6.94	20	68	2900	3.0
45	ISGB50-20(I)A	22.3	6.19	16	66	2900	2.2
46	ISGB50-32(I)	25	6.94	32	63	2900	4.0
47	ISGB50-32(I)A	23.4	6.5	28	62	2900	4.0
48	ISGB50-32(I)B	21.6	6.0	24	61	2900	3.0
49	ISGB50-50(I)	25	6.94	50	58	2900	7.5
50	ISGB50-50(I)A	23.5	6.53	44	57	2900	7.5
51	ISGB50-50(I)B	21.8	6.06	38	55	2900	5.5
52	ISGB50-80(I)	25	6.94	80	50	2900	15.0
53	ISGB50-80(I)A	23.4	6.5	70	51	2900	11.0
54	ISGB50-80(I)B	21.6	6.0	60	50	2900	11.0
55	ISGB50-125(I)	25	6.94	125	40	2900	30.0
56	ISGB50-125(I)A	23.7	6.58	113	40	2900	22.0
57	ISGB50-125(I)B	22.5	6.25	101	39	2900	18.5
58	ISGB50-125(I)C	20.6	5.72	85	38	2900	15.0
59	ISGB65-12.5	25	6.94	12.5	69	2900	1.5
60	ISGB65-12.5A	22.3	6.19	10	67	2900	1.1
61	ISGB65-20	25	6.94	20	68	2900	3.0
62	ISGB65-20A	22.3	6.19	16	66	2900	2.2
63	ISGB65-32	25	6.94	32	63	2900	4.0
64	ISGB65-32A	23.4	6.5	28	62	2900	4.0
65	ISGB65-32B	21.6	6.0	24	61	2900	3.0
66	ISGB65-50	25	6.94	50	58	2900	7.5
67	ISGB65-50A	23.5	6.53	44	57	2900	7.5
68	ISGB65-50B	21.8	6.06	38	55	2900	5.5
69	ISGB65-80	25	6.94	80	50	2900	15.0
70	ISGB65-80A	23.4	6.5	70	50	2900	11.0
71	ISGB65-80B	21.6	6.0	60	49	2900	11.0
72	ISGB65-125	25	6.94	125	40	2900	30.0
73	ISGB65-125A	23.7	6.58	113	40	2900	22.0
74	ISGB65-125B	22.5	6.25	101	39	2900	18.5
75	ISGB65-125C	20.6	5.72	85	38	2900	15.0
76	ISGB65-12.5(I)	50	13.9	12.5	73	2900	3.0
77	ISGB65-12.5(I)A	44.7	12.4	10	72	2900	2.2
78	ISGB65-20(I)	50	13.9	20	72.5	2900	5.5
79	ISGB65-20(I)A	45	12.5	16	71	2900	4.0
80	ISGB65-32(I)	50	13.9	32	71	2900	7.5
81	ISGB65-32(I)A	46.7	13.0	28	70	2900	7.5
82	ISGB65-32(I)B	43.3	12.0	24	69	2900	5.5
83	ISGB65-50(I)	50	13.9	50	67	2900	15.0
84	ISGB65-50(I)A	47	13.1	44	66	2900	11.0
85	ISGB65-50(I)B	43.5	12.1	38	65	2900	7.5
86	ISGB65-80(I)	50	13.9	80	59	2900	22.0
87	ISGB65-80(I)A	46.7	13.0	70	59	2900	18.5
88	ISGB65-80(I)B	43.3	12.0	60	58	2900	15.0
89	ISGB65-125(I)	50	13.9	125	54	2900	37.0
90	ISGB65-125(I)A	46.5	12.9	113	54	2900	30.0
91	ISGB65-125(I)B	44.5	12.4	101	53	2900	30.0
92	ISGB65-125(I)C	41	11.4	85	51	2900	22.0
93	ISGB80-12.5	50	13.9	12.5	73	2900	3.0
94	ISGB80-12.5A	44.7	12.5	10	72	2900	2.2
95	ISGB80-20	50	13.9	20	72.5	2900	5.5
96	ISGB80-20A	45	12.5	16	71	2900	4.0
97	ISGB80-32	50	13.9	32	71	2900	7.5
98	ISGB80-32A	46.7	13.0	28	70	2900	7.5
99	ISGB80-32B	43.3	12.0	24	69	2900	5.5
100	ISGB80-50	50	13.9	50	67	2900	15.0
101	ISGB80-50A	47	13.1	44	66	2900	11.0
102	ISGB80-50B	43.5	12.1	38	65	2900	7.5
103	ISGB80-80	50	13.9	80	59	2900	22.0
104	ISGB80-80A	46.7	13.0	70	59	2900	18.5
105	ISGB80-80B	43.3	12.0	60	58	2900	15.0
106	ISGB80-125	50	13.9	125	54	2900	37.0
107	ISGB80-125A	46.5	12.9	113	53	2900	30.0
108	ISGB80-125B	44.5	12.4	101	53	2900	30.0
109	ISGB80-125C	41	11.4	85	51	2900	22.0
110	ISGB80-12.5(I)	100	27.8	12.5	76	2900	5.5
111	ISGB80-12.5(I)A	89	24.7	10	74	2900	4.0
112	ISGB80-20(I)	100	27.8	20	76	2900	11.0
113	ISGB80-20(I)A	89	24.7	16	74	2900	7.5
114	ISGB80-32(I)	100	27.8	32	76	2900	15.0
115	ISGB80-32(I)A	93.5	26.0	28	74	2900	11.0
116	ISGB80-32(I)B	86.6	24.1	24	72	2900	11.0
117	ISGB80-50(I)	100	27.8	50	74	2900	22.0
118	ISGB80-50(I)A	93.5	26.4	44	73	2900	18.5
119	ISGB80-50(I)B	87	24.2	38	71	2900	15.0
120	ISGB80-80(I)	100	27.8	80	69	2900	37.0
121	ISGB80-80(I)A	93.5	26.0	70	68	2900	30.0
122	ISGB80-80(I)B	87	24.2	60	66	2900	30.0
123	ISGB80-125(I)	100	27.8	125	66	2900	75.0
124	ISGB80-125(I)A	95	26.4	113	66	2900	55.0
125	ISGB80-125(I)B	90	25	101	65	2900	45.0
126	ISGB80-125(I)C	82	22.8	85	63	2900	37.0
127	ISGB100-12.5	100	27.8	12.5	76	2900	5.5
128	ISGB100-12.5A	89	24.7	10	74	2900	4.0
129	ISGB100-20	100	27.8	20	76	2900	11.0
130	ISGB100-20A	89	24.7	16	74	2900	7.5
131	ISGB100-32	100	27.8	32	76	2900	15.0
132	ISGB100-32A	93.5	26.0	28	74	2900	11.0
133	ISGB100-32B	86.6	24.1	24	72	2900	11.0
134	ISGB100-50	100	27.8	50	74	2900	22.0
135	ISGB100-50A	93.5	26.0	44	73	2900	18.5
136	ISGB100-50B	87	24.2	38	71	2900	15.0
137	ISGB100-80	100	27.8	80	69	2900	37.0
138	ISGB100-80A	93.5	26.0	70	68	2900	30.0
139	ISGB100-80B	87	24.2	60	67	2900	30.0
140	ISGB100-125	100	27.8	125	66	2900	75.0
141	ISGB100-125A	95	26.4	113	66	2900	55.0
142	ISGB100-125B	90	25.0	101	65	2900	45.0
143	ISGB100-125C	82	22.8	85	63	2900	37.0
144	ISGB125-12.5	160	44.4	12.5	82	2900	11.0
145	ISGB125-12.5A	143	39.7	10	77	2900	7.5
146	ISGB125-20	160	44.4	20	80	2900	15.0
147	ISGB125-20A	143	39.7	16	77	2900	11.0
148	ISGB125-32	160	44.4	32	78	2900	22.0
149	ISGB125-32A	150	41.7	28	76	2900	18.5
150	ISGB125-32B	138	38.3	24	73	2900	15.0
151	ISGB125-50	160	44.4	50	79	2900	37.0
152	ISGB125-50A	150	41.7	44	74	2900	30.0
153	ISGB125-50B	138	38.3	37.5	72	2900	22.0
154	ISGB125-80	160	44.4	80	77	2900	55.0
155	ISGB125-80A	150	41.7	70	74	2900	45.0
156	ISGB125-80B	138	38.3	60	73	2900	37.0
157	ISGB125-125	160	44.7	125	72	2900	90.0
158	ISGB125-125A	150	41.7	110	70	2900	75.0
159	ISGB125-125B	143	39.7	100	69	2900	75.0
160	ISGB125-125C	134	37.2	88	68	2900	55.0
161	ISGB125-32(I)	200	55.6	32	76	2900	30.0
162	ISGB125-32(I)A	187	51.9	28	75	2900	22.0
163	ISGB125-50(I)	200	55.6	50	74	2900	45.0
164	ISGB125-50(I)A	187	51.9	44	73	2900	37.0
165	ISGB125-50(I)B	173	48.1	37	72	2900	30.0
166	ISGB125-80(I)	200	55.6	80	76	2900	75.0
167	ISGB125-80(I)A	187	51.9	70	75	2900	55.0
168	ISGB125-80(I)B	173	48.1	60	74	2900	45.0
169	ISGB125-125(I)	200	55.6	125	73	2900	110.0
170	ISGB125-125(I)A	187	51.9	110	72	2900	90.0
171	ISGB125-125(I)B	173	48.1	95	700	2900	75.0
172	ISGB150-12.5	160	44.4	12.5	72	2900	11.0
173	ISGB150-12.5A	140	39	10	70	2900	7.5
174	ISGB150-20	160	44.4	20	71	2900	15.0
175	ISGB150-20A	140	39	17	70	2900	11.0
176	ISGB150-20B	120	33.3	14	70	2900	7.5
177	ISGB150-32	160	44.4	32	70	2900	22.0
178	ISGB150-32A	140	39	28	71	2900	18.5
179	ISGB150-32B	120	33.3	24	71	2900	15.0
180	ISGB150-50	160	44.4	50	72	2900	37.0
181	ISGB150-50A	140	39	44	70	2900	20.0
182	ISGB150-50B	120	33.3	38	70	2900	22.0
183	ISGB150-80	160	44.4	80	72	2900	55.0
184	ISGB150-80A	140	39	70	70	2900	45.0
185	ISGB150-80B	120	33.3	60	67	2900	37.0
186	ISGB150-80	200	55.6	80	76	2900	75.0
187	ISGB150-80A	187	51.9	70	75	2900	55.0
188	ISGB150-80B	173	48.1	60	74	2900	45.0
189	ISGB150-125	200	55.6	125	73	2900	110.0
190	ISGB130-125A	187	51.9	110	72	2900	90.0
191	ISGB150-125B	173	48.1	95	70	2900	75.0
192	ISGB150-12.5(I)	200	55.6	12.5	78	1450	15.0
193	ISGB150-12.5(I)A	179	49.7	10	76	1450	11.0
194	ISGB150-20(I)	200	55.6	20	79	1450	18.5
195	ISGB150-20(I)A	184	51.2	17	78	1450	15.0
196	ISGB150-20(I)B	167	46.4	14	76	1450	11.0
197	ISGB150-32(I)	200	55.6	32	78	1450	30.0
198	ISGB150-32(I)A	187	51.9	28	77	1450	22.0
199	ISGB150-32(I)B	173	48.1	24	76	1450	18.5
200	ISGB150-50(I)	200	55.6	50	75	1450	45.0
201	ISGB150-50(I)A	187	51.9	44	74	1450	37.0
202	ISGB150-50(I)B	174	48.3	38	73	1450	30.0
203	ISGB150-50(I)C	160	44.4	32	71	1450	22.0
204	ISGB150-80(I)	200	55.6	80	69	1450	75.0
205	ISGB150-80(I)A	187	51.9	70.5	68	1450	75.0
206	ISGB150-80(I)B	174	48.3	62	66	1450	55.0
207	ISGB150-80(I)C	160	44.4	54.5	64	1450	45.0
208	ISGB200-12.5	200	55.6	12.5	78	1450	15.0
209	ISGB200-12.5A	179	49.7	10	76	1450	11.0
210	ISGB200-20	200	55.6	20	79	1450	18.5
211	ISGB200-20A	184	51.2	17	78	1450	15.0
212	ISGB200-20B	167	46.4	14	76	1450	11.0
213	ISGB200-32	200	55.6	32	78	1450	30.0
214	ISGB200-32A	187	51.9	27	77	1450	22.0
215	ISGB200-32B	173	48.1	24	76	1450	18.5
216	ISGB200-50	200	55.6	50	75	1450	45.0
217	ISGB200-50A	187	51.9	44	74	1450	37.0
218	ISGB200-50B	174	48.3	38	73	1450	30.0
219	ISGB200-50C	160	44.4	32	71	1450	22.0
220	ISGB200-12.5(I)	400	111.1	12.5	80	1450	22.0
221	ISGB200-12.5(I)A	358	99.4	10	78	1450	18.5
222	ISGB200-20(I)	400	111.1	20	80	1450	30.0
223	ISGB200-20(I)A	358	99.4	17	78	1450	22.0
224	ISGB200-20(I)B	322	89.4	14	75	1450	18.5
225	ISGB200-32(I)	400	111.1	32	80	1450	55.0
226	ISGB200-32(I)A	374	103.9	28	79	1450	45.0
227	ISGB200-32(I)B	346	96.1	24	78	1450	37.0
228	ISGB200-20(I)	400	111.1	50	81	1450	75.0
229	ISGB200-20(I)A	352	103.9	44	80	1450	75.0
230	ISGB200-20(I)B	346	96.1	38	78	1450	55.0
231	ISGB200-20(I)C	320	88.9	32	76	1450	45.0
232	ISGB200-80(I)	400	111.1	80	80	1450	132.0
233	ISGB200-80(I)A	374	103.9	70	79	1450	110.0
234	ISGB200-80(I)B	346	96.1	60	78	1450	90.0
235	ISGB200-40(I)C	320	88.9	56	76	1450	75.0
236	ISGB200-125(I)	400	111.1	125	79	1450	200.0
237	ISGB200-125(I)A	352	97.8	112	78	1450	200.0
238	ISGB200-125(I)B	320	88.9	96	77	1450	132.0
239	ISGB250-12.5	650	152.8	12.5	82	1450	30.0
240	ISGB250-12.5A	506	140.6	10.8	80	1450	22.0
241	ISGB250-20	550	152.8	20	82	1450	45.0
242	ISGB250-20A	506	140.6	17	80	1450	37.0
243	ISGB250-32	550	152.8	32	80	1450	75.0
244	ISGB250-32A	506	140.6	28	78	1450	55.0
245	ISGB250-32B	466	129.3	25	76	1450	45.0
246	ISGB250-50	550	152.8	50	76	1450	110.0
247	ISGB250-50A	506	140.6	44	74	1450	90.0
248	ISGB250-50B	466	129.3	39.5	72	1450	75.0
249	ISGB250-50C	428	119	35	69	1450	75.0
250	ISGB250-70	550	152.8	70	76	1450	160.0
251	ISGB250-70A	506	140.6	60	75	1450	132.0
252	ISGB250-70B	466	129.3	50	74	1450	90.0
253	ISGB250-70C	428	119	44	72	1450	75.0
254	ISGB250-80	550	152.8	80	77	1450	200.0
255	ISGB250-80A	506	140.6	71	75	1450	160.0
256	ISGB250-80B	466	129.3	63.5	73	1450	132.0
257	ISGB250-80C	428	119	55	71	1450	110.0
258	ISGB300-12.5	720	200	12.5	83	1450	37.0
259	ISGB300-12.5A	662	184	11	82	1450	30.0
260	ISGB300-18	720	200	18	81	1450	55.0
261	ISGB300-18A	607	182.5	15	79	1450	45.0
262	ISGB300-18B	600	167	12.5	77	1450	37.0
263	ISGB300-20	720	200	20	83	1450	55.0
264	ISGB300-20A	662	184	17.5	81	1450	45.0
265	ISGB300-28	720	200	28	81	1450	75.0
266	ISGB300-28A	666	185	24	80	1450	75.0
267	ISGB300-28B	623	173.1	21	79	1450	55.0
268	ISGB300-32	720	200	32	82.5	1450	90.0
269	ISGB300-32A	662	184	28	80	1450	75.0
270	ISGB300-32B	609	169.3	23.5	78	1450	55.0
271	ISGB300-44	720	200	44	84	1450	132.0
272	ISGB300-44A	666	185	38	80	1450	110.0
273	ISGB300-44B	614	170.6	32	78	1450	90.0
274	ISGB300-50	720	200	50	80	1450	132.0
275	ISGB300-50A	662	184	44	79	1450	110.0
276	ISGB300-50B	609	169.3	38	77	1450	90.0
277	ISGB300-50C	561	155.7	33	74	1450	75.0
278	ISGB300-65	720	200	65	81	1450	200.0
279	ISGB300-65A	662	184	55	80	1450	160.0
280	ISGB300-65B	609	169.3	45	79	1450	110.0
281	ISGB300-65C	561	155.7	38	78	1450	90.0
282	ISGB300-80	720	200	80	80	1450	250.0
283	ISGB300-80A	662	184	70.5	79	1450	200.0
284	ISGB300-80B	609	169.3	62	77	1450	160.0
285	ISGB300-80C	561	155.7	54.5	75	1450	132.0
286	ISGB350-12.5	1080	300	12.5	83	970	55.0
287	ISGB350-12.5A	995	276.4	10	81	970	45.0
288	ISGB350-20	1080	300	20	82	970	90.0
289	ISGB350-20A	995	376.4	17	80	970	75.0
290	ISGB350-20B	931	258.6	15	78	970	55.0
291	ISGB350-32	1080	300	32	83	1450	132.0
292	ISGB350-32A	995	276.4	27	81	1450	110.0
293	ISGB350-32B	931	258.6	24	79	1450	90.0
294	ISGB350-40	1080	300	40	82	1450	160.0
295	ISGB350-40A	965	268.1	32	80	1450	132.0
296	ISGB350-40B	900	250	28.2	78	1450	110.0
297	ISGB350-50	1080	300	50	83	1450	200.0
298	ISGB350-50A	995	276.4	44	81	1450	160.0
299	ISGB350-50B	931	258.6	38	79	1450	132.0
300	ISGB350-60	1080	300	60	82	1450	250.0
301	ISGB350-60A	995	376.4	54	80	1450	200.0
302	ISGB350-60B	931	258.6	46.9	78	1450	160.0
303	ISGB350-12.5(I)	1200	333.3	12.5	80	970	55.0
304	ISGB350-12.5(I)A	1080	300	10.5	80	970	45.0
305	ISGB350-200(I)	1200	333.3	20	80	970	90.0
306	ISGB350-200(I)A	1080	300	17	78	970	75.0
307	ISGB350-32(I)	1200	333.3	32	78	1450	160.0
308	ISGB350-32(I)A	1080	300	28	76	1450	132.0
309	ISGB350-32(I)B	985	273	25	75	1450	110.0
310	ISGB350-500(I)	1200	333.3	50	74	1450	250.0
311	ISGB350-500(I)A	1080	300	44	72	1450	200.0
312	ISGB350-500(I)B	985	273	38.5	70	1450	160.0
